Chainsaw Milling Attachment 18" to 48" With 36" Bar and 3/8 058 FULL Chisel Skip Tooth Ripping Chain

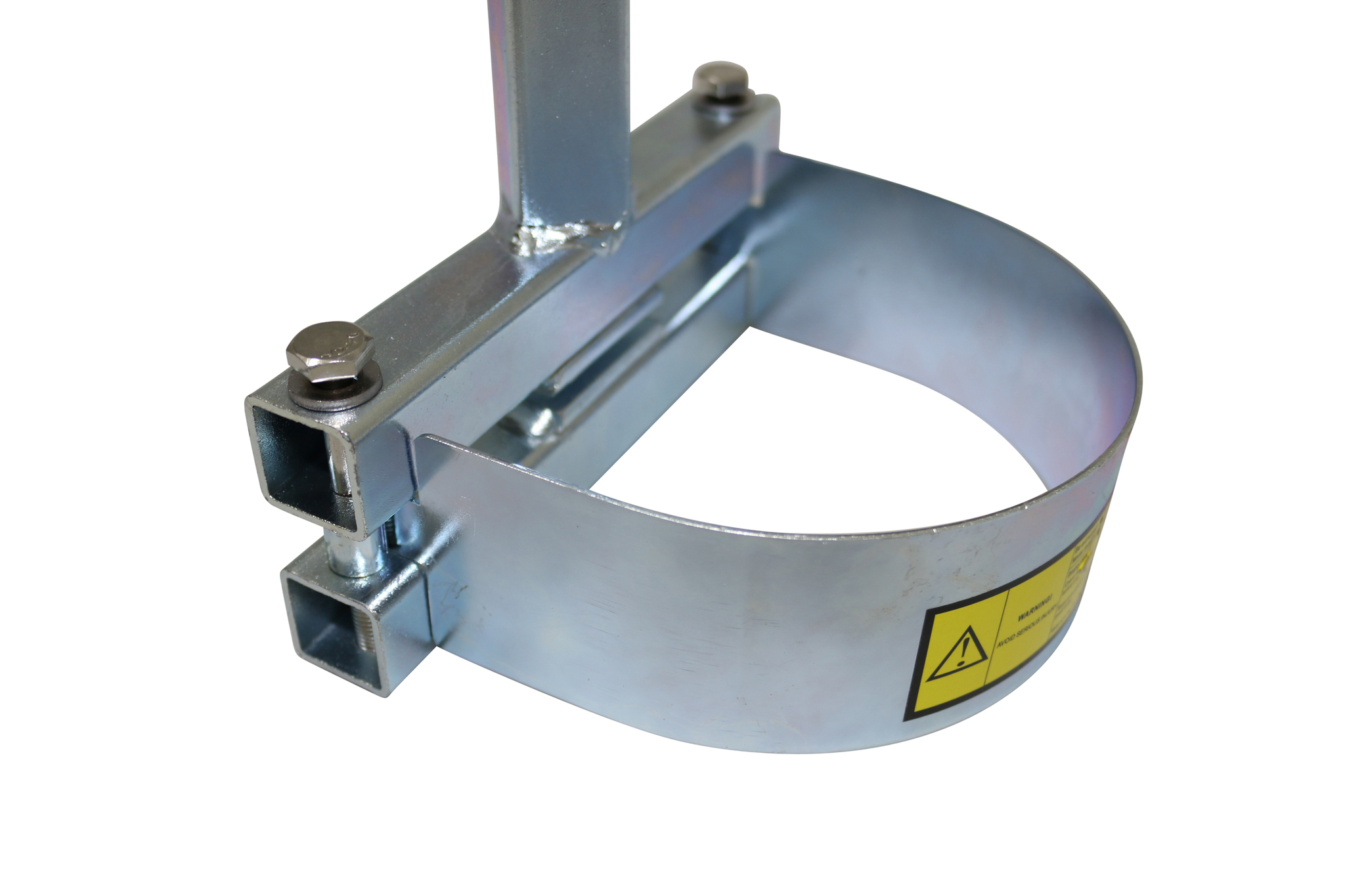

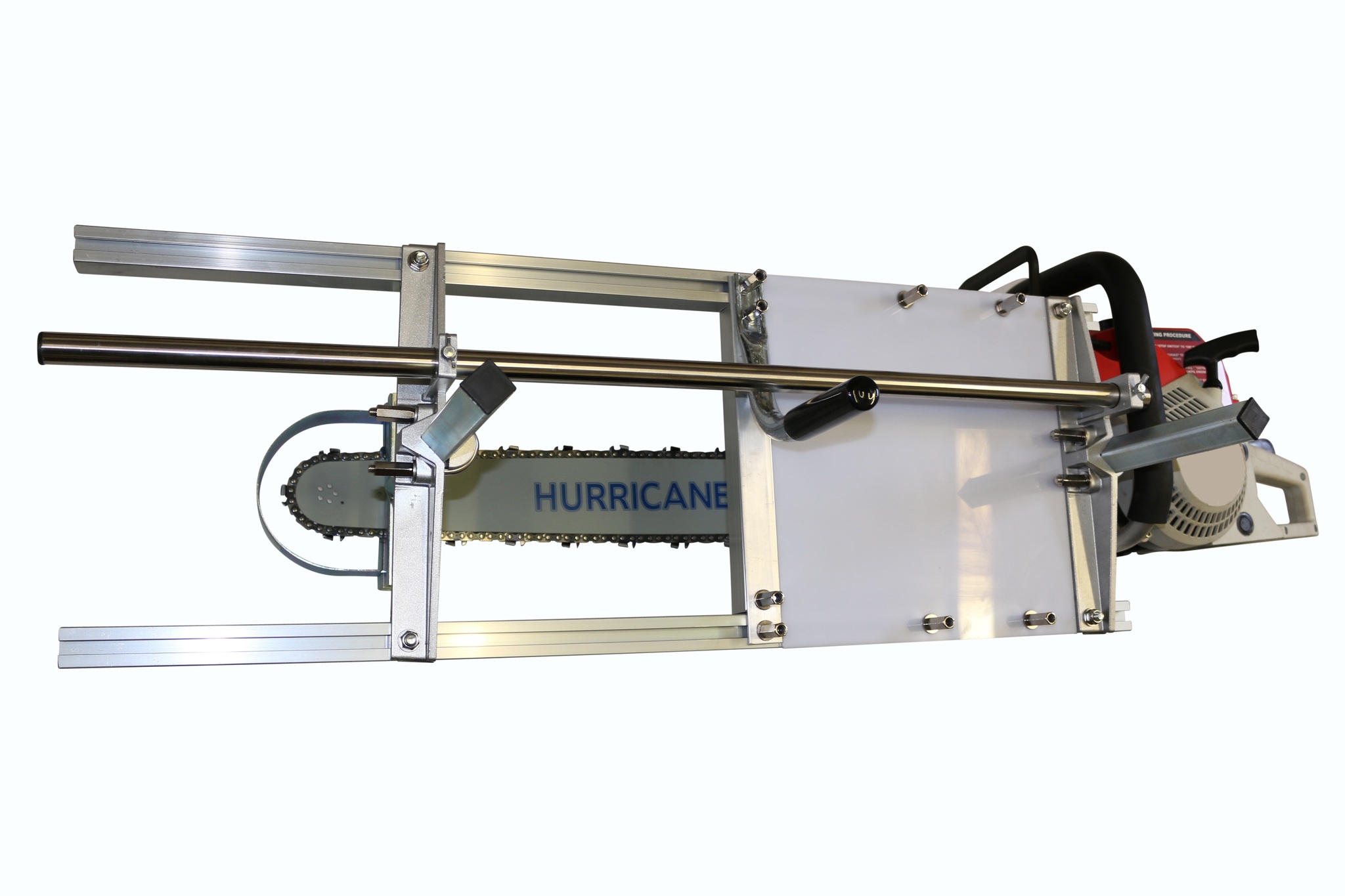

This Jono & Johno chainsaw mill will convert your chainsaw into a portable mill/slabbing machine! It comes with an adjustable chainsaw bar clamp so you can mount your chainsaw fitted with a 18" to 48" bar. Simply clamp your chainsaw bar to the milling attachment and you now have your very own portable saw mill.

SUITS THE FOLLOWING BAUMR AG AND MTM CHAINSAWS: SX92 Gen 2 and Gen 3 and MTM 82cc 82SX. Cannot garantee it will fit any other saw! Call us first if not sure!

THIS KIT INCLUDES:

18" to 48" Milling attachment
36" Hurricane Pro bar

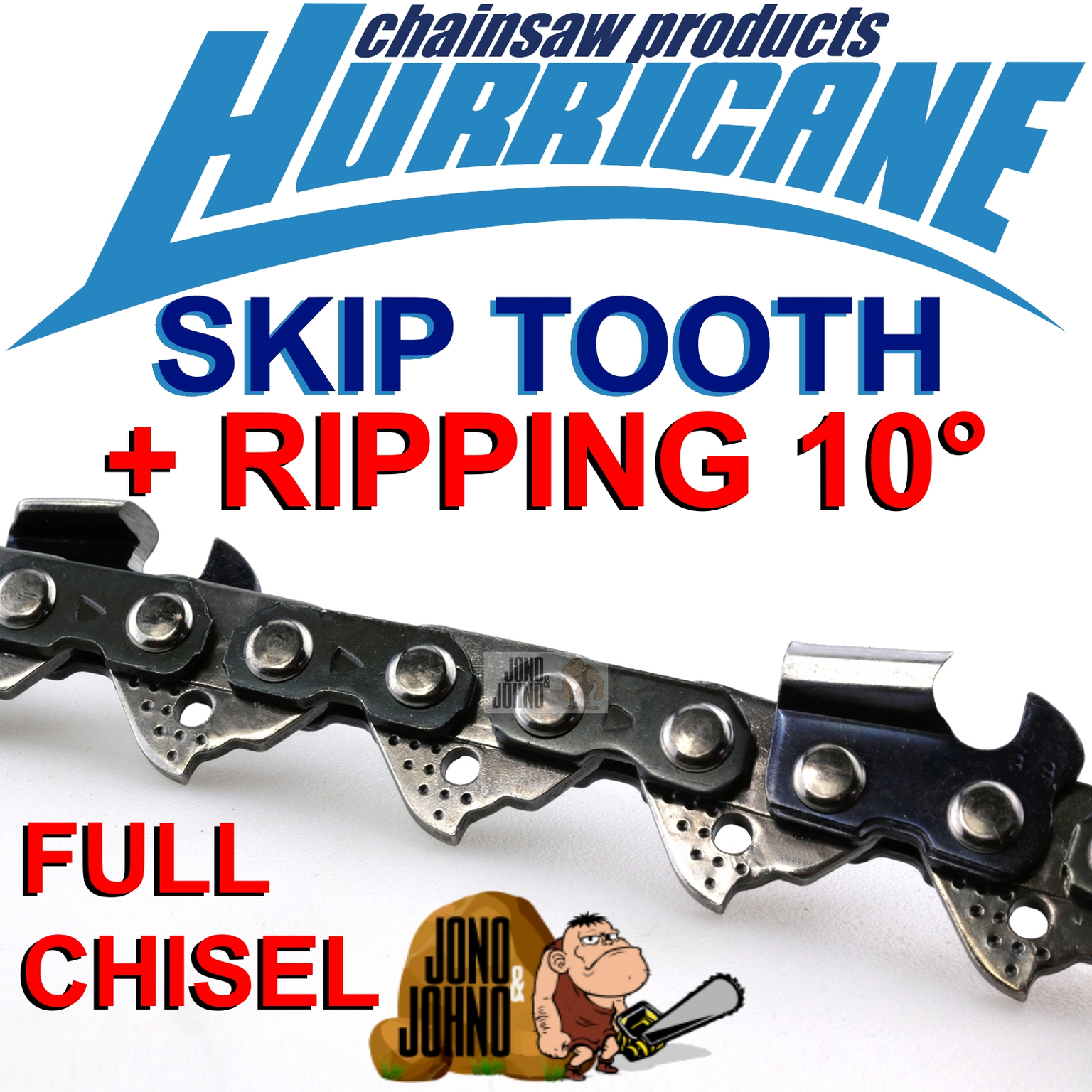

3/8 058 115DL Hurricane FULL Chisel Skip Tooth Ripping chain.

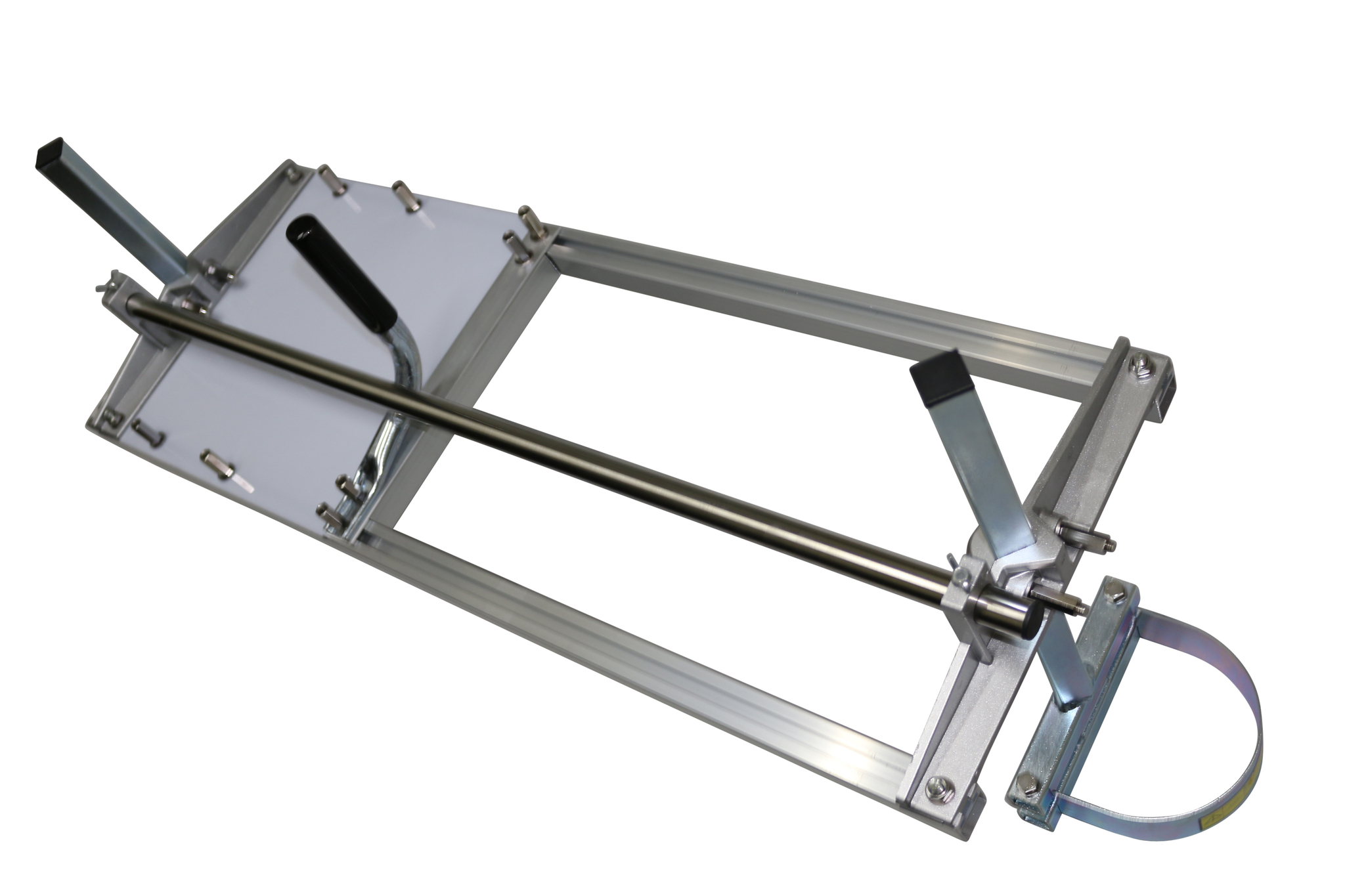

Light but sturdy, this mill is designed to produce smooth-cut slabs from your logs and trees. It is made of heavy duty aluminium components and also includes a protective plate made of perspex.

This tool has a parallel bar that can have it's distance adjusted from the chainsaw bar to provide different thickness slabs. The first slab is cut by using a couple of guide rails placed and secured onto the top of the log. You can then mill slabs between 1/2" to 13" thick.

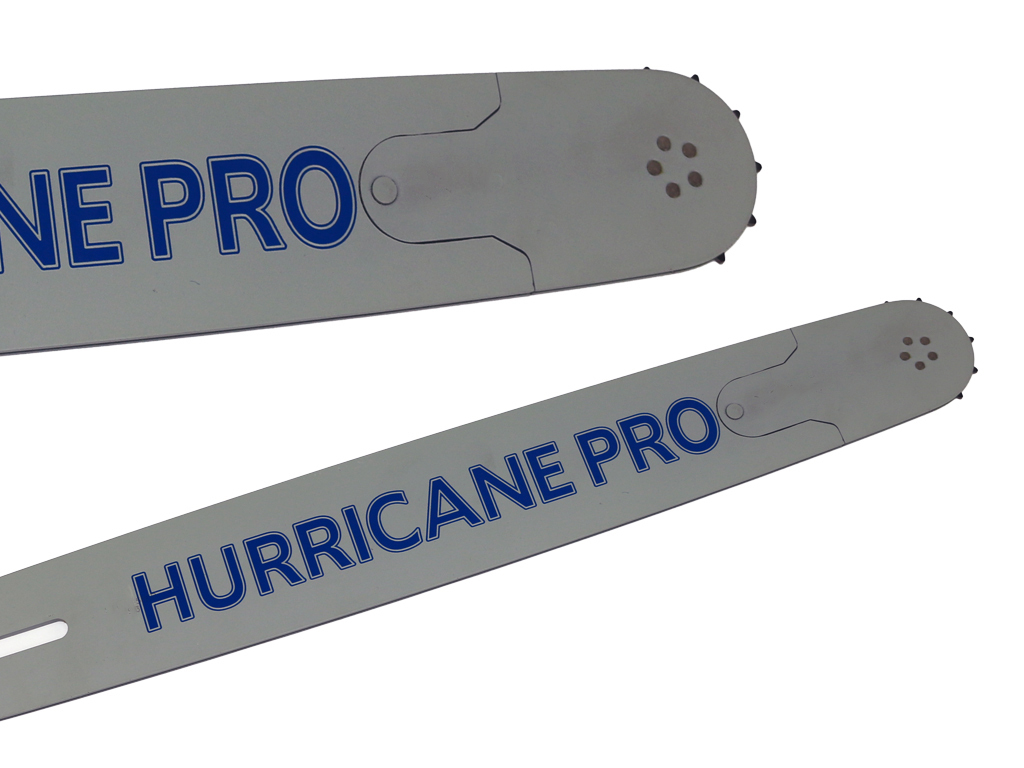

As part of this combo, you also get a quality Hurricane Pro laser cut bar and 3/8 058 115DL Hurricane FULL Chisel Skip Tooth Ripping chain. Simply bolt it all up to your chainsaw and you have all you need for your slabbing and milling needs!

Includes instruction manual and operation guide detailing assembly of mill and how to use it, with colour pictures.

**Please note the chainsaw shown in the photos above are for illustration purposes only and is NOT included with the mill.**

FEATURES:

Aircraft grade 29mm square aluminum mill frame

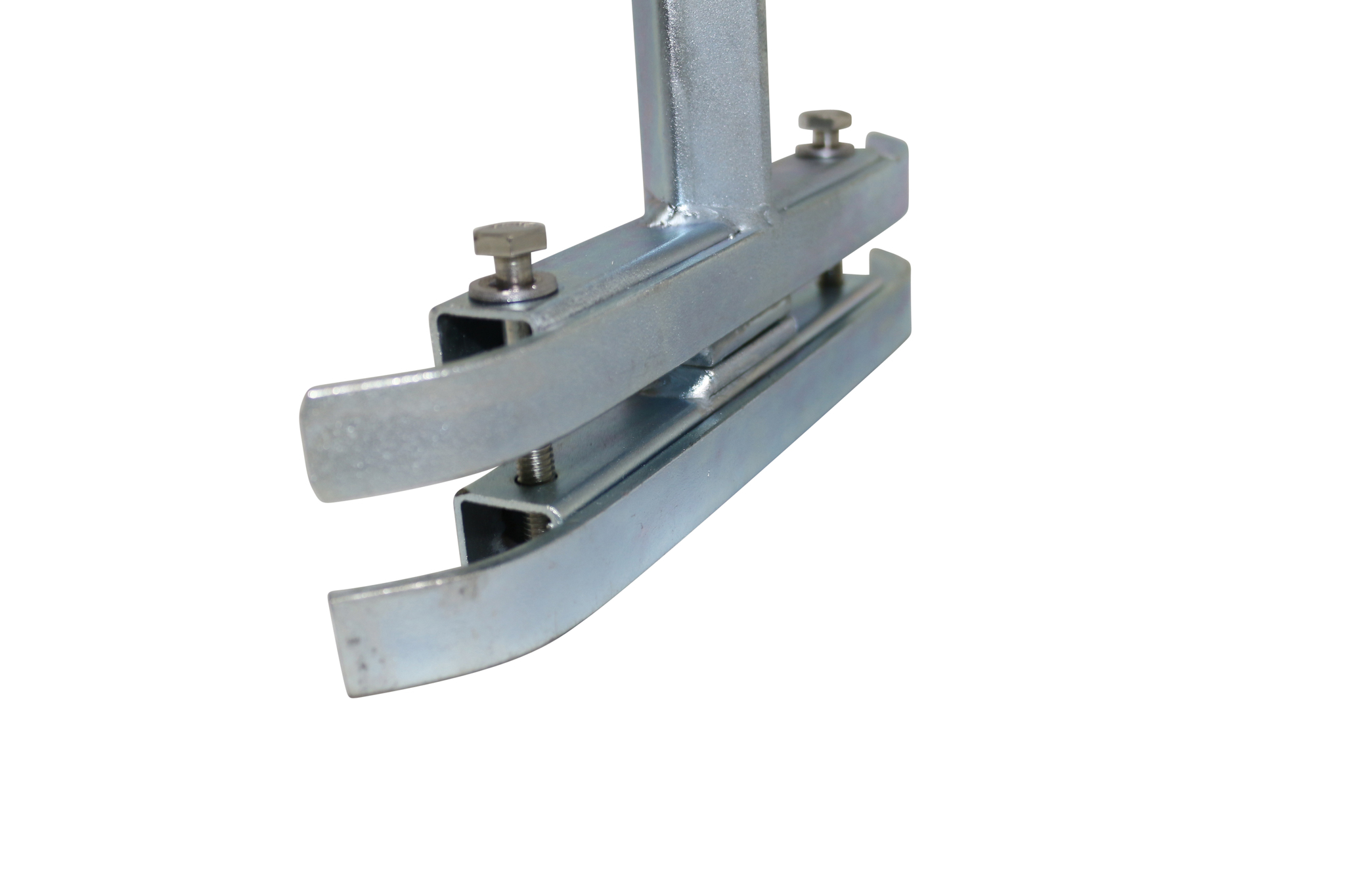

Square steel 25mm clamping pad brackets
Tubular steel 22mm handle bars

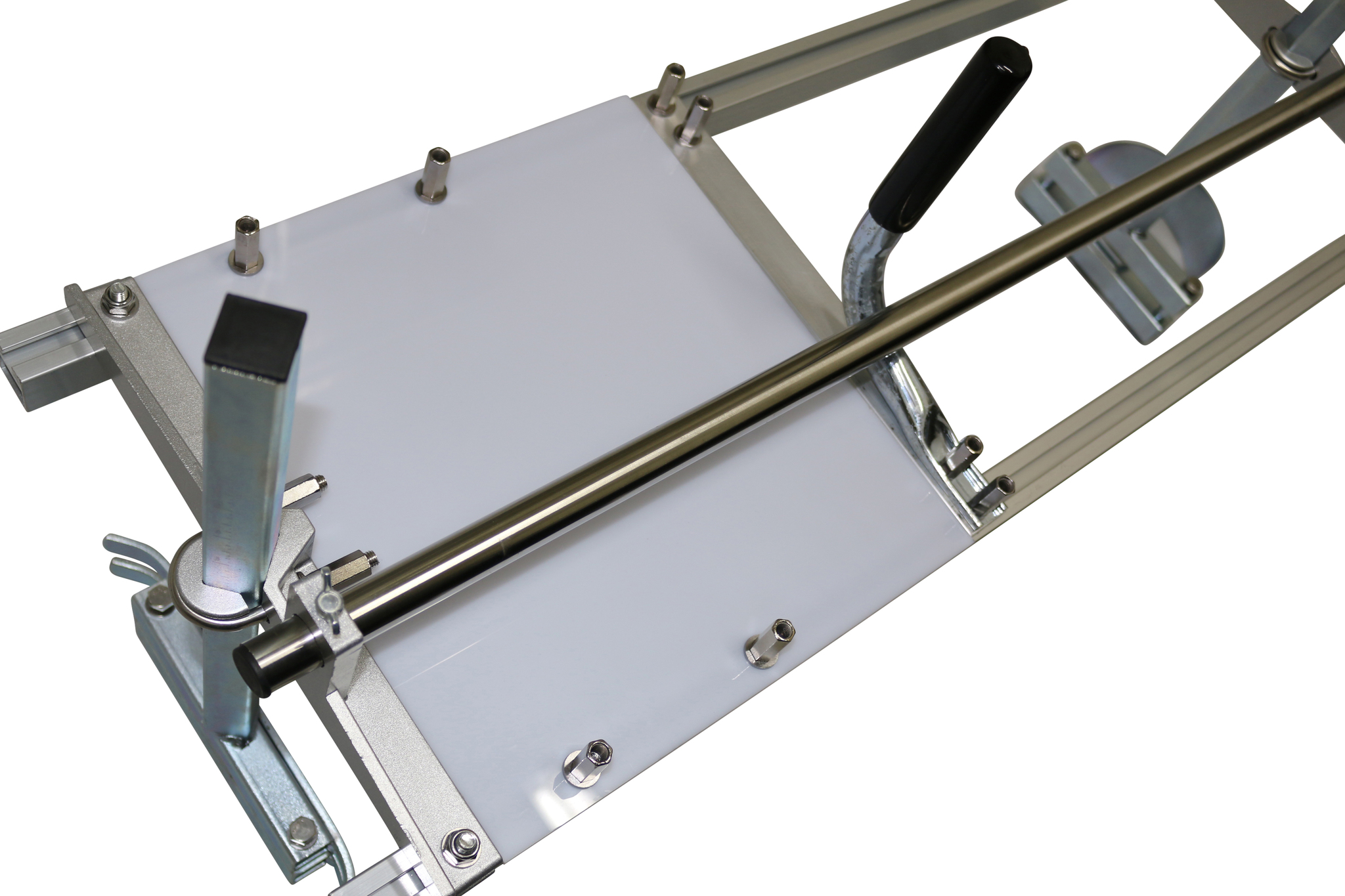

Protective perspex plate to guard against injury
Strong clamp to hold weight of all brand name chainsaws
Suitable for chainsaws with a bar length between 18" and 48"
Box dimmensions for shipping: 123cm x 33cm x 7cm
Maximum slabbing width: 1100mm (43.3")
Maximum slabbing thickness: 1/2" to 13" (12.7mm to 330mm)
36" Hurricane Pro bar and 3/8 058 115DL Hurricane FULL Chisel Skip Tooth Ripping chain.

Please call us if you wish to purchase a different variation to the one we have listed. Please do not purchase online and then call us wanting to make changes. If you purchase a package online then that is exactly what you will receive.

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on all products.

We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

Exactly what is covered by warranty will depend on 2 things:

If the fault is due to user or manufacturer
If the fault is minor or major

Minor faults caused by user - Parts will be supplied for repair at user expense.

Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.

Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.

Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.

HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?

If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.

If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.

EXCEPTIONS TO THE RULE

If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.

SKU	MK042
Model #	MK042
Barcode #	682157270606
Brand	Hurricane
Shipping Weight	11.8000kg
Shipping Width	0.330m
Shipping Height	0.080m
Shipping Length	1.240m
Shipping Cubic	0.032736000m3
Unit Of Measure	ea
Items included in the kit
Product Name	Quantity	SKU

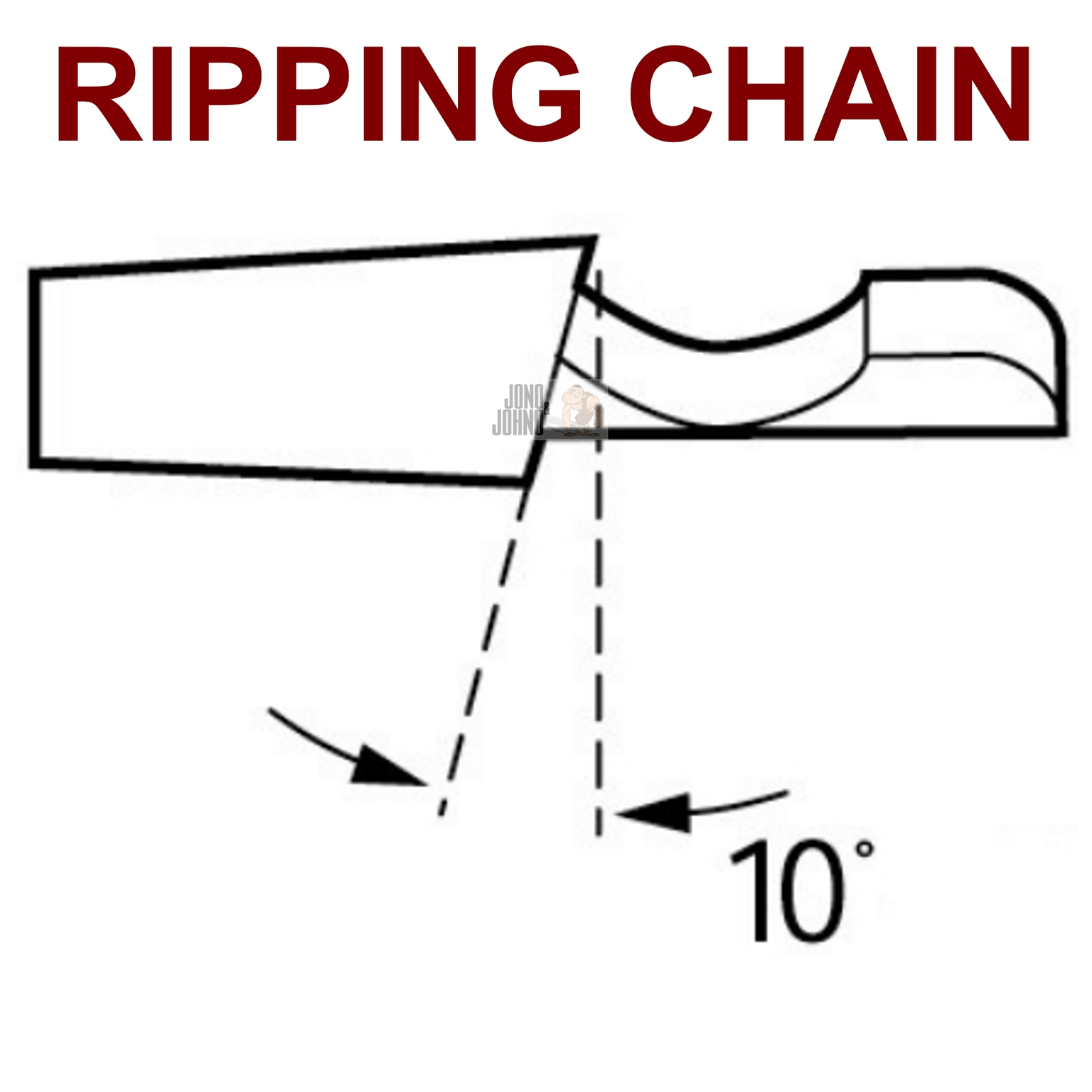

1x Chainsaw Chain 3/8 058 115DL Full Chisel Skip Tooth Ripping 10 Degree	1	115SLAB12
Chainsaw Milling Attachment 18 to 48" Bar Mill Slabbing Ripping Sawmill Portable	1	CM004
36" Pro Bar only for Husqvarna 395 3120 etc using 3/8 058 115DL chain	1	SHV36-58ER
